Sensational Ups Changeover Switch Circuit

This makes the lt4412 an ideal replacement for power supply oring diodes.

Ups changeover switch circuit. This circuit can supply enough current to 500ma circuit applications such as a small digital clock. This circuit can be used for the automatic switchover of a load between a battery and a wall adapter ltc4412 controls an external p channel mosfet to create a near ideal diode function for power switch over and load sharing. An automatic transfer switch functions in the same way as a manual but will also switch the upss load to mains electric automatically if the ups experiences an internal failure.

A wide range of mosfets can be driven using the ic and this gives much flexibility in. Ups relay changeover circuit. Ups bypass mode is when you switch the circuit from going through the ups to going around or bypassing it.

6v backup battery regulator using 7805. Small emergency lighting system and more. To implement this generator ups battery relay changeover i have introduced two options in the design one is using the ic 4060 timer circuit and the second using the ic 741 opamp comparator circuit.

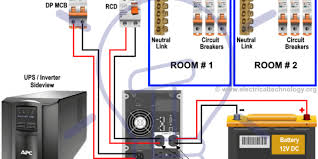

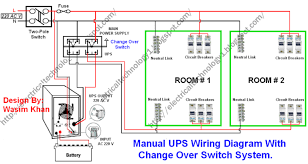

In the following diagram some of the breaker for specific load in the rooms has been connected to the output of the ups where we need continues power supply. In this methods of wiring the battery and ups has been connected directly to the main supply where the output of the ups has been connected to the partial load specific appliances where we need continues power supply in case of power failure with the help of two pole single phase manual changeover switch. The working and operation of this circuit as same as above expect the automatic changeover switch ats will detect the utility power when restores from the power house and automatically transfer from the generator inverter to the main power supply.

This post i will shown the complete method of manual or handle change over switch the knob type manual changeover switch wiring same like handle change over switch and it s just like a voltmeter sector switch. The circuit diagram shown here is of a automatic changeover switch using ic ltc4412 from linear technologies. The idea was requested by mr.

Referring to the simple ups relay changeover circuit the functioning of the various stages may be understood as follows. T1 forms the sole zero detector component and triggers only when the ac mains half cycles are near to crossover points that s either below 0 6v or above 0 6v. This could be used for switching over the output from ac mains to inverter mains during inappropriate voltage conditions.
